Mitsubishi

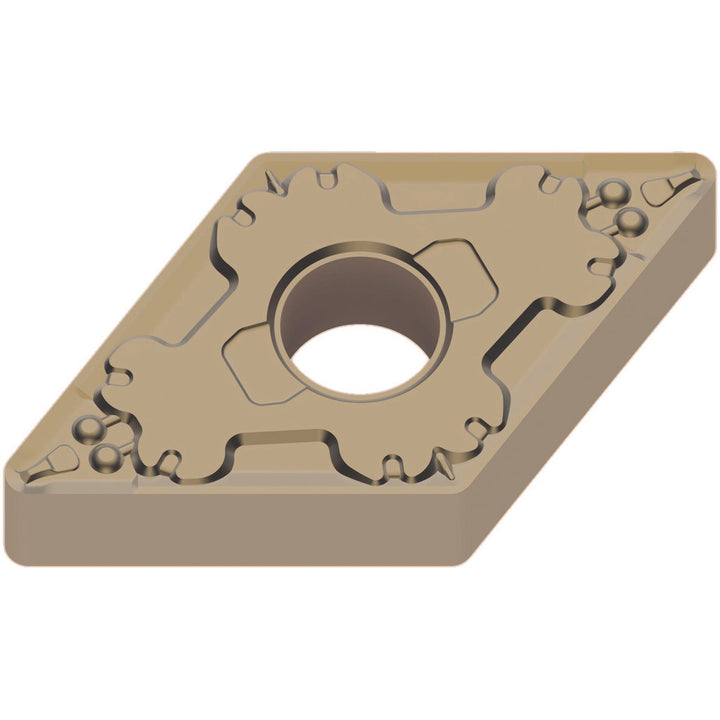

D - Diamond (Rhombic) 55-Deg 1/2" IC Carbide Insert, Grade MC7015, CVD - Mitsubishi 641676
MFR# 641676ISO/ANSI# DNMG150404
$25.99List $33.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeMC7015
MaterialCarbide
CoatingCVD
Description
The Mitsubishi 641676 is a carbide indexable insert, grade MC7015, CVD coated.
Specifications
Ansi insert codeDNMG431
Ansi size code431
Chip breakerLM
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating finishCVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code4
Insert styleDNMG
Insert thickness in3/16
Iso insert codeDNMG150404
Iso size code150404
Manufacturer gradeMC7015
Number of cutting edges4
Relief angle0
Side clearanceNegative
Tolerance codeM
