Mitsubishi

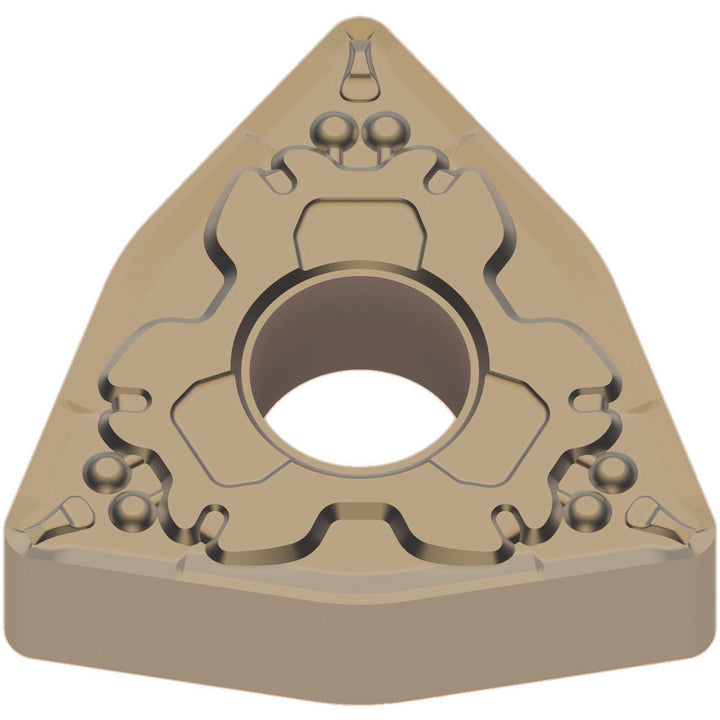

W - Trigon 80-Deg 3/8" IC Carbide Insert, Grade MC7015, CVD - Mitsubishi 641801
MFR# 641801ISO/ANSI# WNMG060404
$13.04List $16.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeW - Trigon 80-Deg
GradeMC7015
MaterialCarbide
CoatingCVD
Description
The Mitsubishi 641801 is a carbide indexable insert, grade MC7015, CVD coated.
Specifications
Ansi insert codeWNMG331
Ansi size code331
Chip breakerLM
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating finishCVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code3
Insert styleWNMG
Insert thickness in3/16
Iso insert codeWNMG060404
Iso size code060404
Manufacturer gradeMC7015
Number of cutting edges6
Relief angle0
Side clearanceNegative
Tolerance codeM
