Mitsubishi

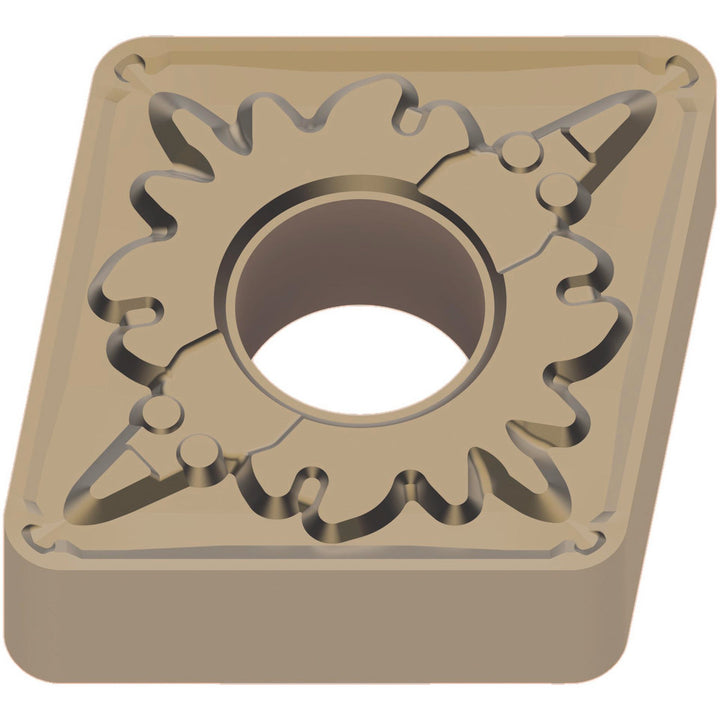

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade MC7015, CVD - Mitsubishi 641844
MFR# 641844ISO/ANSI# CNMG120408
$16.50List $21.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeMC7015
MaterialCarbide
CoatingCVD
Description
The Mitsubishi 641844 is a carbide indexable insert, grade MC7015, CVD coated.
Specifications
Ansi insert codeCNMG432
Ansi size code432
Chip breakerMM
Chip breaker operationMedium Machining
Clearance codeN
Coating finishCVD
Corner radius in1/32
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code4
Insert styleCNMG
Insert thickness in3/16
Iso insert codeCNMG120408
Iso size code120408
Manufacturer gradeMC7015
Number of cutting edges4
Relief angle0
Side clearanceNegative
Tolerance codeM
