Mitsubishi

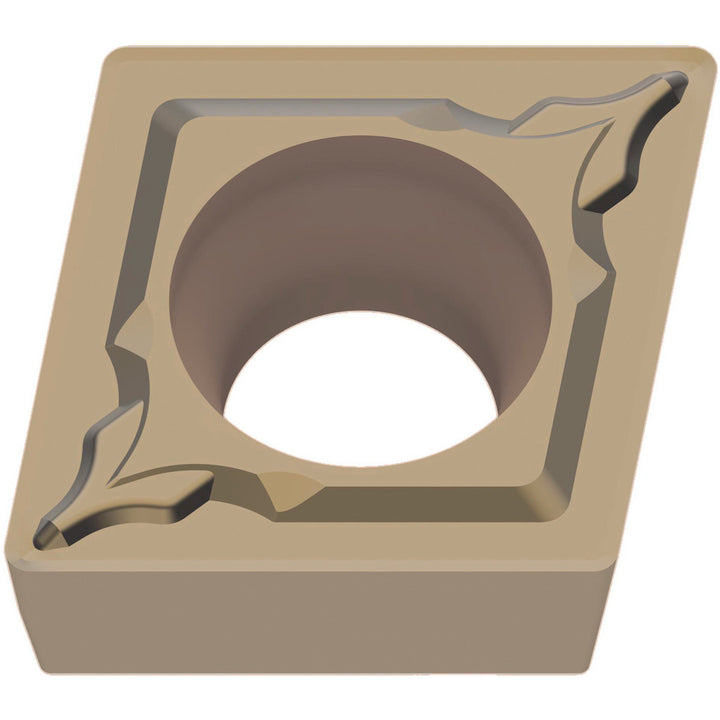

C - Diamond (Rhombic) 80-Deg 1/4" IC Carbide Insert, Grade MC7025, CVD - Mitsubishi 659147
MFR# 659147ISO/ANSI# CCMT060204
$17.37List $22.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeMC7025
MaterialCarbide
CoatingCVD
Description
The Mitsubishi 659147 is a carbide indexable insert, grade MC7025, CVD coated.
Specifications
Ansi insert codeCCMT21.51
Ansi size code21.51
Chip breakerLM
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishCVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code2
Insert styleCCMT
Insert thickness in3/32
Iso insert codeCCMT060204
Iso size code060204
Manufacturer gradeMC7025
Number of cutting edges2
Relief angle7
Side clearancePositive
Tolerance codeM
