Mitsubishi

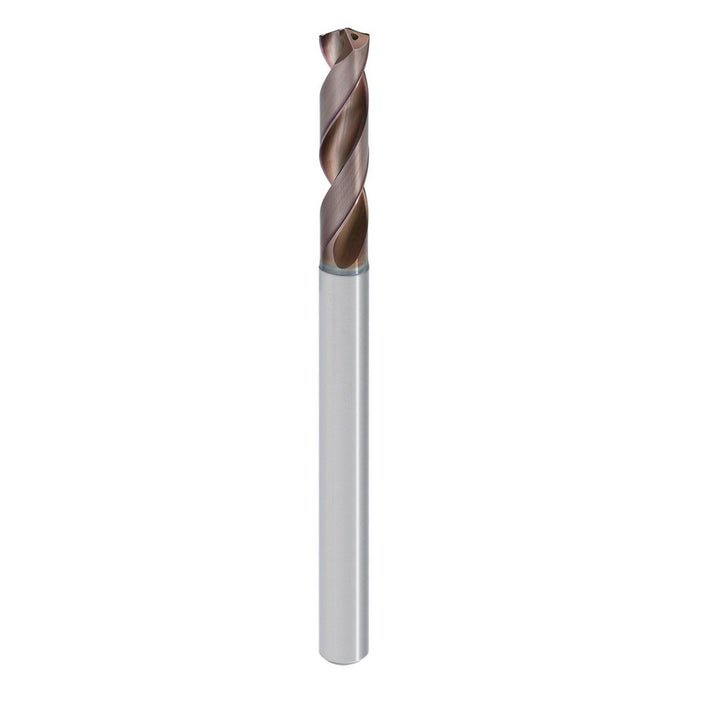

17/64" Carbide Drill Bit, TiAlN, 140° point - Mitsubishi 662670
MFR# 662670Series MVS
$121.26List $150.29
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size17/64
Flutes2
CoatingTiAlN
Description
The Mitsubishi 662670 is a 17/64" Carbide drill bit with a TiAlN finish, 140° point. Suited for steel. Series MVS.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeHigh Performance; High Precision
Drill bit size in17/64
Drill point angle140
Drill point length0.0480
Flute by diameter ratio3xD
Flute length1.4250
Flute typeHelical
Maximum drilling depth0.8440
Number of flutes2
Overall length3.5130
Point typeX-Thinning
Primary workpiece materialSteel
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Structural Steel; Tempered Steel; Iron; High Strength Bronze; Hardened Steel; Copper; Cast Iron; Carbon Steel; Bronze; Brass; Aluminum; Aluminum Alloy
Shank diameter0.315
Shank length2.0080
Shank typeCylindrical
Specification designationISO
Spiral typeRight Hand
Tool applicationCross Hole; Drilling; Stack Drilling
Tool materialCarbide
Web configurationParallel
Web thinningX-Thinned
