Mitsubishi

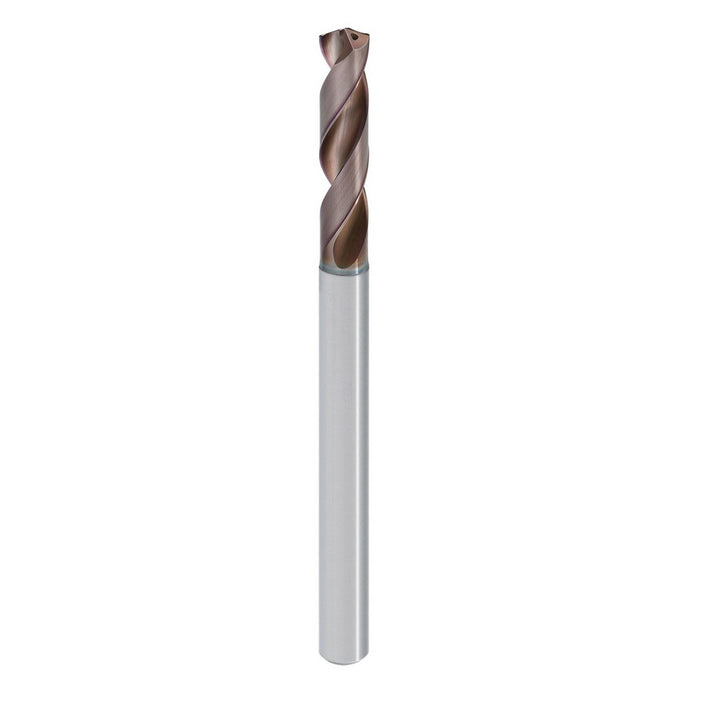

0.4370" Carbide Drill Bit, TiAlN, 140° point - Mitsubishi 670362
MFR# 670362Series MVS
$394.58List $489.06
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Mitsubishi 670362 is a 0.4370" Carbide drill bit with a TiAlN finish, 140° point. Suited for steel. Series MVS.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeHigh Performance; High Precision
Drill bit size0.4370
Drill point angle140
Drill point length0.0787
Flute by diameter ratio8xD
Flute length5.0787
Flute typeHelical
Maximum drilling depth3.5748
Number of flutes2
Overall length7.7165
Point typeX-Thinning
Primary workpiece materialSteel
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Structural Steel; Tempered Steel; Iron; High Strength Bronze; Hardened Steel; Copper; Cast Iron; Carbon Steel; Bronze; Brass; Aluminum; Aluminum Alloy
Shank diameter0.4724
Shank length2.4409
Shank typeCylindrical
Specification designationISO
Spiral typeRight Hand
Tool applicationCross Hole; Drilling; Stack Drilling
Tool materialCarbide
Web configurationParallel
Web thinningX-Thinned
