Mitsubishi

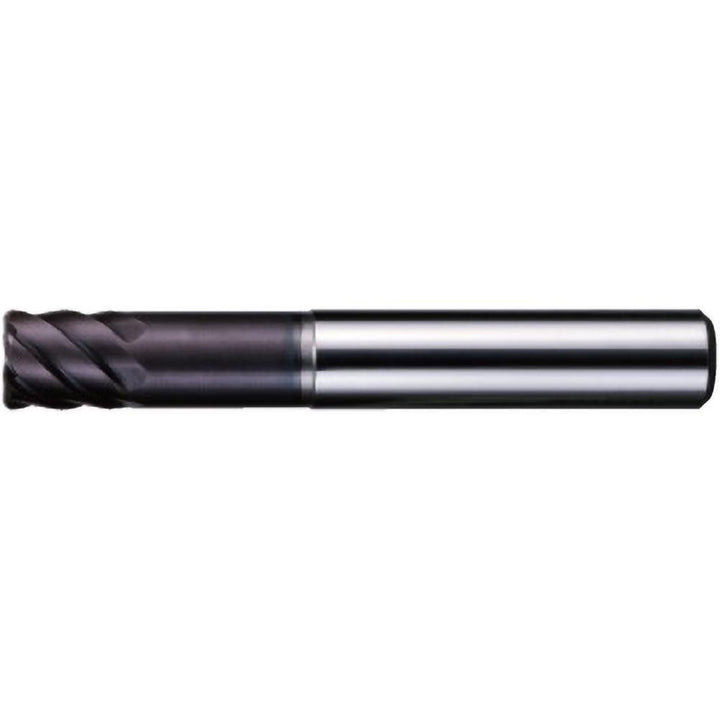

0.2362" 6-Flute Solid Carbide Corner Radius End Mill, AlTiSiN - Mitsubishi 905889
MFR# 905889
$121.90List $156.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
MaterialSolid Carbide
CoatingAlTiSiN
Description
The Mitsubishi 905889 is a 0.2362 6-flute Solid Carbide corner radius end mill with a AlTiSiN finish for longer tool life. Suited for steel.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishAlTiSiN
Coolant throughNo
Corner radius0.0118
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut (mm)6.00
Length typeShort
Material applicationHardened Steel; Steel
Material removal typeRoughing & Finishing
Mill diameter0.2362
Neck diameter0.2303
Number of flutes6
Overall length (mm)50
Primary workpiece materialSteel
Secondary workpiece materialSteel
Shank diameter (mm)6
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
