Mitutoyo
0.0080" Dial Indicator, 0.000100" grad - Mitutoyo 2910A-10
MFR# 2910A-10
$195.17List $235.00
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

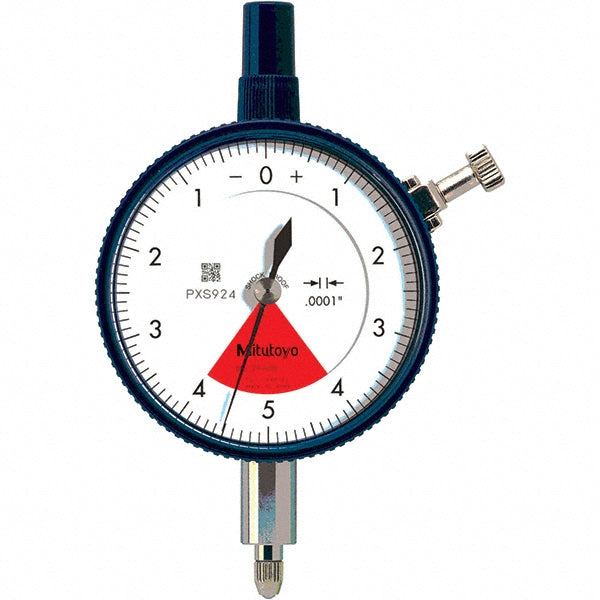

The Mitutoyo 2910A-10 is a 0.0080" dial indicator. 0.000100" graduation. Meets ANSI/AGD.
Specifications
Accuracy0.000100
Agdgpno0
Back typeLug
Bearing typeJeweled
Dial colorWhite
Dial diameter2.2400
Dial graduation0.000100
Dial reading4-0-4
FeaturesJeweled bearing; Shockproof
Maximum measurement0.0080
Measuring force n1.80
Overall length3.9400
Range per revolution0.0100
Revolution counterNo
StandardsANSI/AGD
Stem diameter in3/8
Stem length decimal inch0.5400
Thread size#4-48
