Mitutoyo

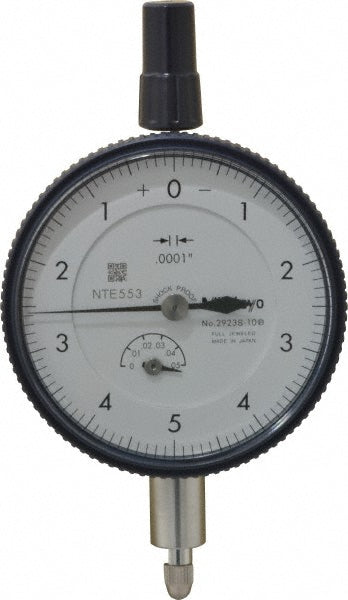

0.0500" Dial Indicator, 0.000100" grad - Mitutoyo 2923A-10
MFR# 2923A-10
$174.42List $210.00
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Mitutoyo 2923A-10 is a 0.0500" dial indicator. 0.000100" graduation. Meets ANSI/AGD.
Specifications
Accuracy0.000200
Agdgpno2
Back typeLug
Bearing typeJeweled
Dial colorWhite
Dial diameter in2-3/16
Dial graduation0.000100
Dial reading0-5-0
Maximum measurement0.0500
Measuring force n2.00
Overall length (mm)100.50
Range per revolution0.0100
Revolution counterYes
StandardsANSI/AGD
Stem diameter0.3750
Stem length (mm)13.60
Thread size#4-48
Unit of measureEnglish
