Mitutoyo

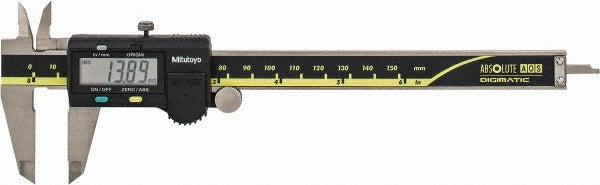

6.00" Caliper - Mitutoyo 500-196-30CAL
MFR# 500-196-30CALSeries 500 ABSOLUTE Digimatic
$200.62List $241.55
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Mitutoyo 500-196-30CAL is a 6.00" stainless steel caliper. Meets NIST Traceability Certified.
Specifications
Accuracy0.0010in, 0.02mm
ApplicationDepth; Inside Diameter; Outside Diameter; Step
Batteries includedYes
Battery chemistrySilver Oxide
Battery sizeSR44
CalibratedYes
Caliper materialStainless Steel
Data outputNo
Data output typeWithout SPC Output
FinishHardened Stainless Steel
IncludesCase
Includes depth measurement rodYes
Includes inside diameter jawsYes
Ip ratingNone
Jaw adjustment typeThumb Wheel
Jaw length (mm)40.00
Jaw materialStainless Steel
Jaw styleInside/Outside
Jaw typeKnife-Edge
Maximum inside diameter measurement in6
Maximum measurement6.00
Measurement range0.00in to 6.00in, 0.00mm to 150.00mm
Number of batteries1
Offset jawNo
Overall length (mm)233.0000
Power sourceBattery
Resolution0.0005in, 0.0100mm
StandardsNIST Traceability Certified
Traceability certification includedNIST
