Mitutoyo

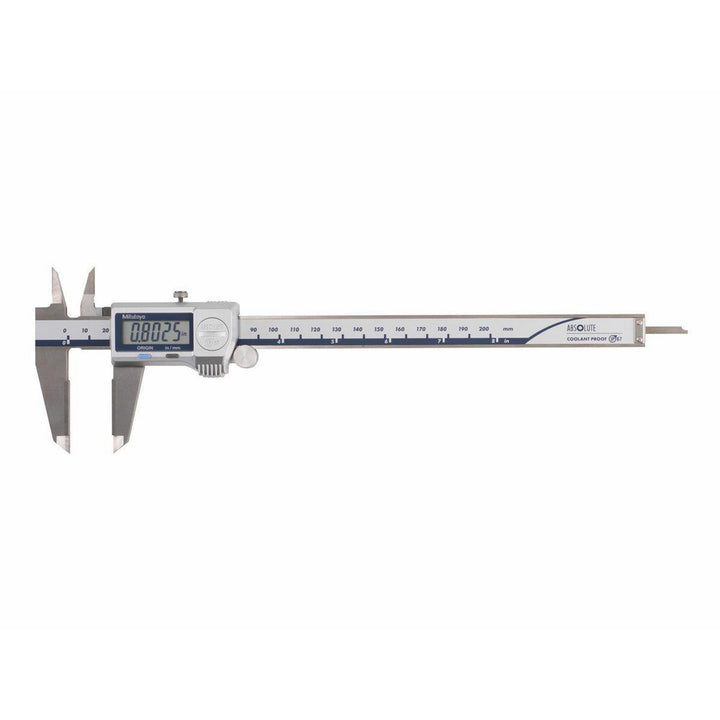

Caliper - Mitutoyo 500-702-20
MFR# 500-702-20Series 500 ABSOLUTE Coolant-Proof
$225.08List $271.00
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Mitutoyo 500-702-20 is a stainless steel caliper. Meets TUV Rheinland Certified.
Specifications
ApplicationDepth; Inside Diameter; Outside Diameter; Step
Batteries includedYes
Battery chemistrySilver Oxide
Battery sizeSR44
CalibratedNo
Caliper materialStainless Steel
Data outputNo
FinishHardened Stainless Steel
IncludesBattery; Caliper; Case
Includes depth measurement rodYes
Includes inside diameter jawsYes
Ip ratingIP67
Jaw adjustment typeThumb Wheel
Jaw length (mm)40.00
Jaw materialStainless Steel
Jaw styleInside; Outside
Jaw typeKnife-Edge
Maximum inside diameter measurement (mm)150.00
Maximum measurement (mm)150.00
Number of batteries1
Offset jawNo
Overall length (mm)233.00
Power sourceBattery
StandardsTUV Rheinland Certified
