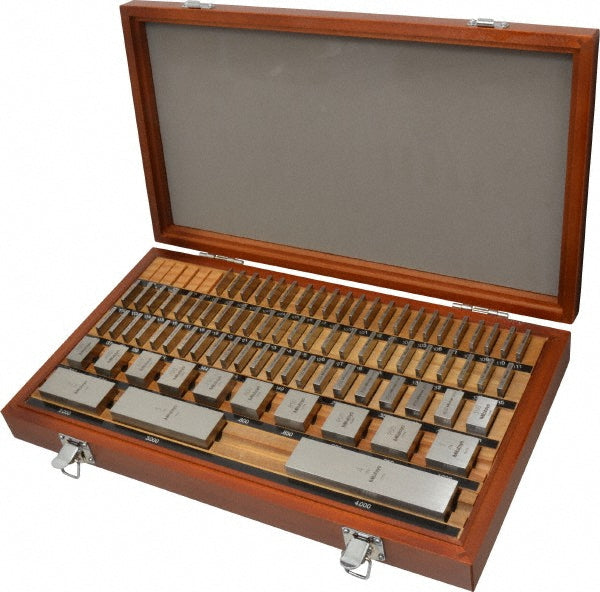

81-Piece Gage Block, Grade AS-2 - Mitutoyo 516-404-26

Mitutoyo

81-Piece Gage Block, Grade AS-2 - Mitutoyo 516-404-26

MFR# 516-404-26

$2,009.93List $2,420.00 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Mitutoyo 516-404-26 is a steel gage block. Meets ASME B89.1.9-2002.

Specifications

Accuracy gradeAS-2
Certification includedYes
IncludesInspection Certificate; Wooden Case
Individually serializedYes
MaterialSteel
Maximum size4.0000
Minimum size0.0500
Number of pieces81
StandardsASME B89.1.9-2002
Step increments in(19) 0.05; (4) 1.000; (49) 0.001; (9) 0.0001
Tolerance micro inch18 (0.05-0.4); 24 (0.45-1); 32 (2); 40 (3); 48 (4)
