Mitutoyo

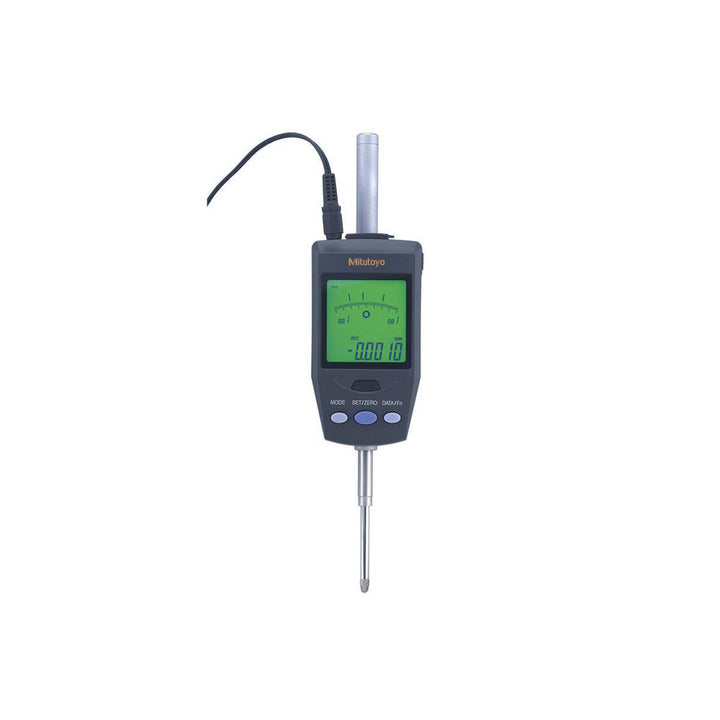

2.4000" Dial Indicator - Mitutoyo 543-564A
MFR# 543-564ASeries 543
$1,143.38List $1,360.00
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Mitutoyo 543-564A is a 2.4000" dial indicator.
Specifications
Accuracy (mm)0.0025
Back typeFlat
Batteries includedYes
Battery size9V
Display typeLCD
FeaturesAvailable in Metric & Inch/Metric Models
IncludesIDH Series Digimatic Indicator
Maximum measurement2.4000
Measuring force n2.50
Minimum measurement0.0000
Number of batteries1
Power sourceBattery
Resolution0.00002; 0.00005; 0.0001
Stem diameter in3/8
Unit of measureInch; Metric
