Mitutoyo

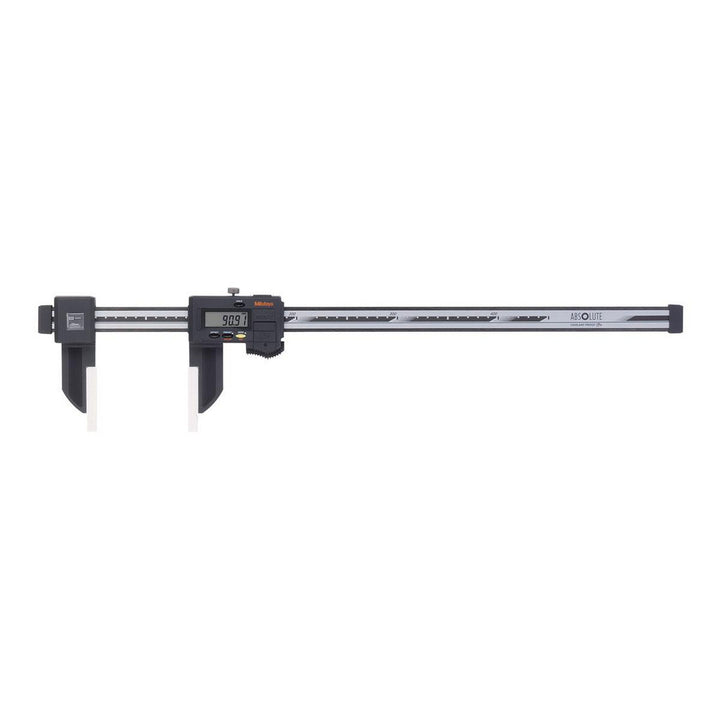

40.0000" Caliper - Mitutoyo 552-314-10CAL
MFR# 552-314-10CALSeries 552 Digimatic Carbon Fiber
$2,212.38List $2,607.00
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Mitutoyo 552-314-10CAL is a 40.0000" carbon fiber reinforced plastic caliper. Meets NIST Traceability Certified; TUV Rheinland Certified.
Specifications
ApplicationInside Diameter; Outside Diameter
Batteries includedYes
Battery chemistrySilver Oxide
Battery sizeSR44
CalibratedYes
Caliper materialCarbon Fiber Reinforced Plastic
Data outputYes
FinishCarbon Fiber
IncludesCase
Includes depth measurement rodNo
Includes inside diameter jawsNo
Ip ratingIP66
Jaw adjustment typeSliding
Jaw length (mm)150.00
Jaw materialCarbon Fiber Reinforced Plastic
Jaw styleOutside
Jaw typeNib
Maximum measurement40.0000
Minimum inside diameter measurement1.0040
Nib size (mm)10.00
Number of batteries1
Offset jawNo
Overall length (mm)1230.0000
Power sourceBattery
StandardsNIST Traceability Certified; TUV Rheinland Certified
Traceability certification includedNIST
