NTK

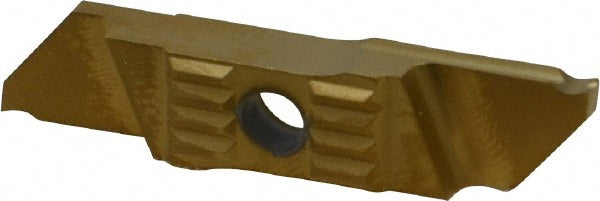

Solid Carbide Insert, Grade ZM3, TiN - NTK 7902553
MFR# 7902553Series CTPW
$48.58List $62.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeZM3
MaterialSolid Carbide
CoatingTiN
Description
The NTK 7902553 is a solid carbide indexable insert, grade ZM3, TiN coated. Suited for non-ferrous metal.
Specifications
ChipbreakerFRN
Coating finishTiN
Coating processPVD
Corner radius0.0020
Cutting height0.3819
Cutting tool applicationCut-off
Cutting width0.0980
Hole diameter0.7870
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert size code25
Insert styleCTPW
Lead angle0
Lead angle directionNeutral
Manufacturer gradeZM3
Material gradeMicrograin
Maximum depth of cut0.4720
Msc manufacturer number25FRN
Multi use toolYes
Overall length1.7717
Overall width0.2560
Primary workpiece materialNon-Ferrous Metal
