OSG

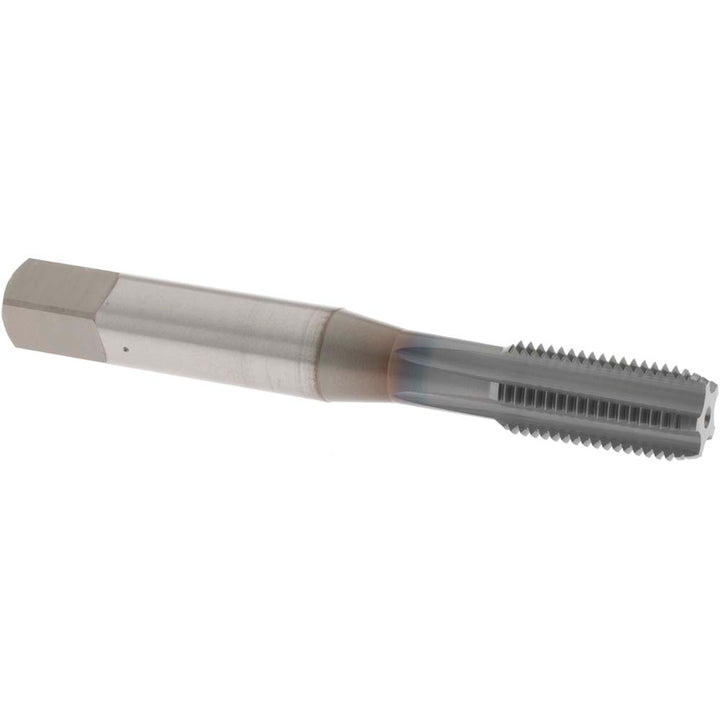

3/8-24 UNF Powdered Metal Machine Tap, TiCN - OSG 1005112408
MFR# 1005112408Series 10051
$55.56List $71.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Thread size3/8-24
CoatingTiCN
Description
The OSG 1005112408 is a 3/8-24 UNF Powdered Metal Machine tap with a TiCN finish. 5 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialPowdered Metal
Material applicationHardened Steel; Alloy Steel
Neck length1.2510
Number of flutes5
Overall length in2-15/16
OversizeNo
Shank diameter0.381
Square length0.4375
Square size0.286
Tap typeMachine
Threads per inch24
Thread directionRight Hand
Thread length in1-1/4
Thread limitH4
Thread size in3/8-24
Thread standardUNF
