OSG
#6-40 UNF High-Speed Steel-E-PM Spiral Point Tap, TiN - OSG 1101507105
MFR# 1101507105Series 11015
$17.39List $22.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#6-40
CoatingTiN
Description

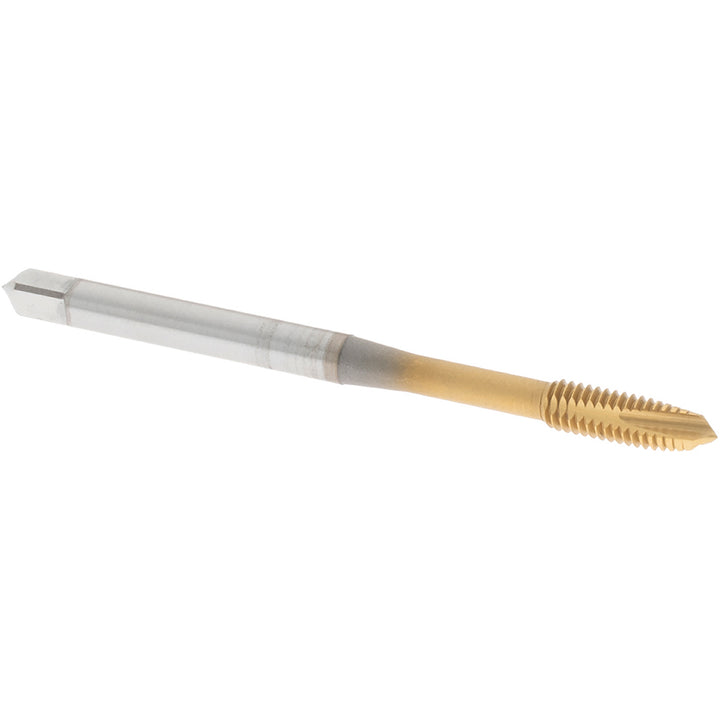

The OSG 1101507105 is a #6-40 UNF High-Speed Steel-E-PM Spiral Point tap with a TiN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Coating finishTiN
Coolant throughNo
Interrupted threadNo
MaterialHigh-Speed Steel-E-PM
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Neck length0.4370
Number of flutes3
Overall length in2
OversizeNo
Shank diameter0.1400
StyleSpiral Point
Threads per inch40
Thread directionRight Hand
Thread length in11/16
Thread limitH4
Thread pitch0.025
Thread size in#6-40
Thread standardUNF
