OSG

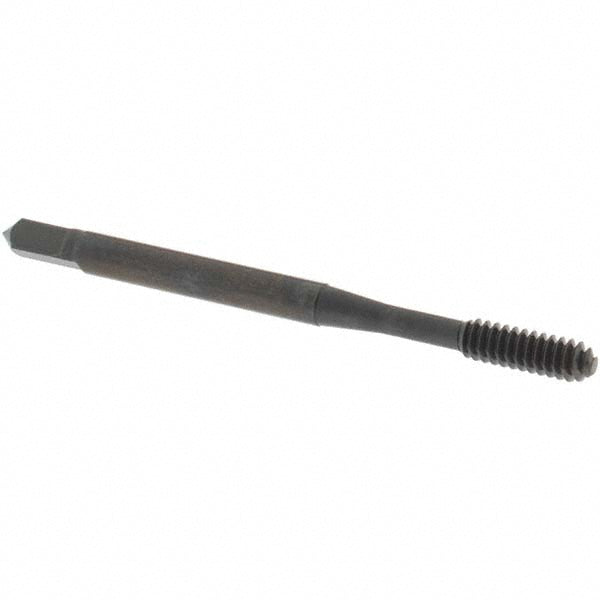

#6-32 UNC Cobalt Tap, Steam Oxide - OSG 1400110001
MFR# 1400110001Series 14001
$14.67List $18.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#6-32
CoatingSteam Oxide
Description
The OSG 1400110001 is a #6-32 UNC Cobalt tap with a Steam Oxide finish.
Specifications
ApplicationThrough-Hole Threading
ChamferBottoming
Chamfered threads1-1.5P
Class of fit3B
Coating finishSteam Oxide
Coolant throughNo
MaterialCobalt
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; N
Overall length in2
Shank diameter0.1410
Square length0.1875
Square size0.1100
Tapping depth0.6850
Threads per inch32
Thread directionRight Hand
Thread length0.3700
Thread limitH3
Thread size in#6-32
Thread standardUNC
Trade nameHY-PRO NRT
