OSG

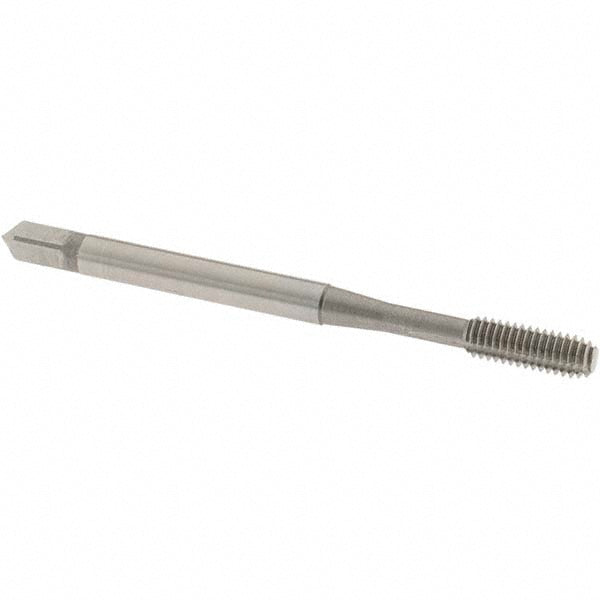

#6-40 UNF Cobalt Tap - OSG 1400112300
MFR# 1400112300Series 14001
$14.67List $18.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#6-40
Description
The OSG 1400112300 is a #6-40 UNF Cobalt tap.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Coolant throughNo
MaterialCobalt
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; N
Overall length in2
Shank diameter0.1410
Square length0.1875
Square size0.1100
Tapping depth0.6850
Threads per inch40
Thread directionRight Hand
Thread length0.3700
Thread limitH4
Thread size in#6-40
Thread standardUNF
Trade nameHY-PRO NRT
