OSG

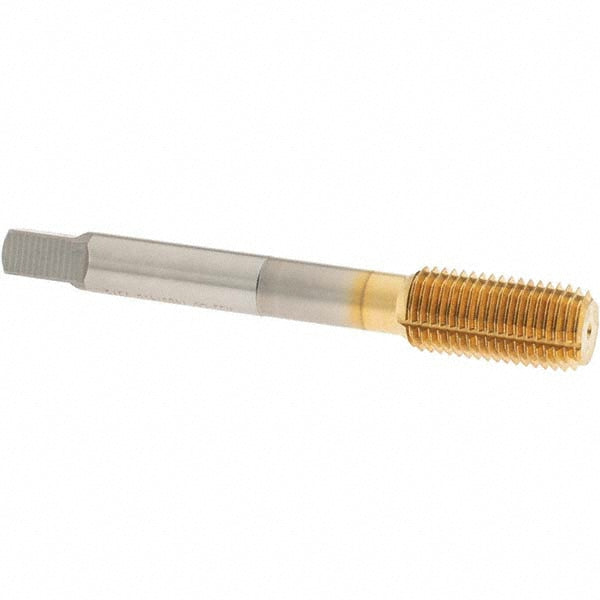

7/16-20 UNF Cobalt Tap, TiN - OSG 1400141005
MFR# 1400141005Series 14001
$44.00List $56.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size7/16-20
CoatingTiN
Description
The OSG 1400141005 is a 7/16-20 UNF Cobalt tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Coating finishTiN
Coolant throughNo
MaterialCobalt
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; N
Overall length in3-5/32
Shank diameter0.3230
Square length0.4063
Square size0.2420
Tapping depth1.7130
Threads per inch20
Thread directionRight Hand
Thread length0.8583
Thread limitH5
Thread size in7/16-20
Thread standardUNF
Trade nameHY-PRO NRT
