OSG

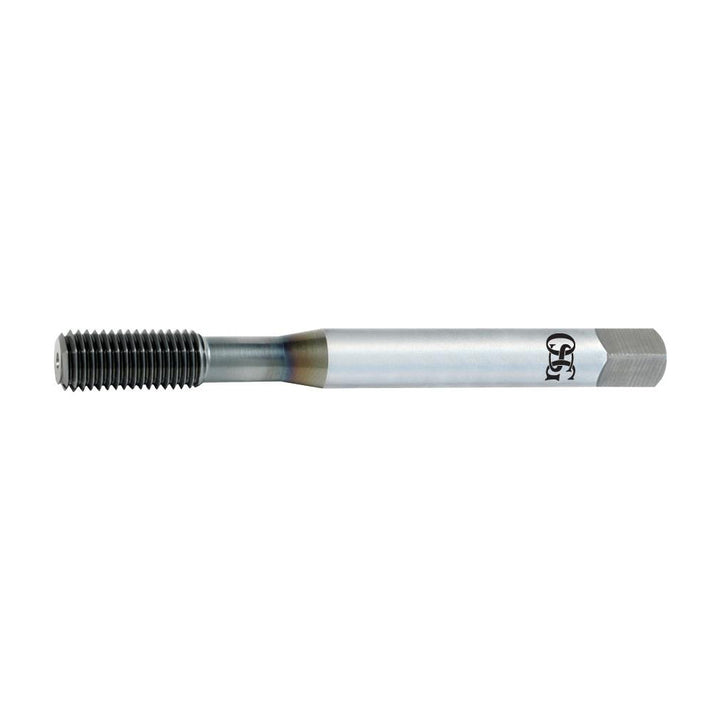

1/4-28 UNF Powdered Metal High-Speed Steel Tap, TiCN - OSG 1405008008
MFR# 1405008008Series 14050
$46.43List $59.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/4-28
CoatingTiCN
Description
The OSG 1405008008 is a 1/4-28 UNF Powdered Metal High-Speed Steel tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Coating finishTiCN
Coolant throughNo
MaterialPowdered Metal High-Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; M; N
Overall length in2-1/2
Shank diameter0.2550
Square length0.3125
Square size0.1910
Tapping depth0.9960
Threads per inch28
Thread directionRight Hand
Thread length0.5945
Thread limitH4
Thread size in1/4-28
Thread standardUNF
