OSG

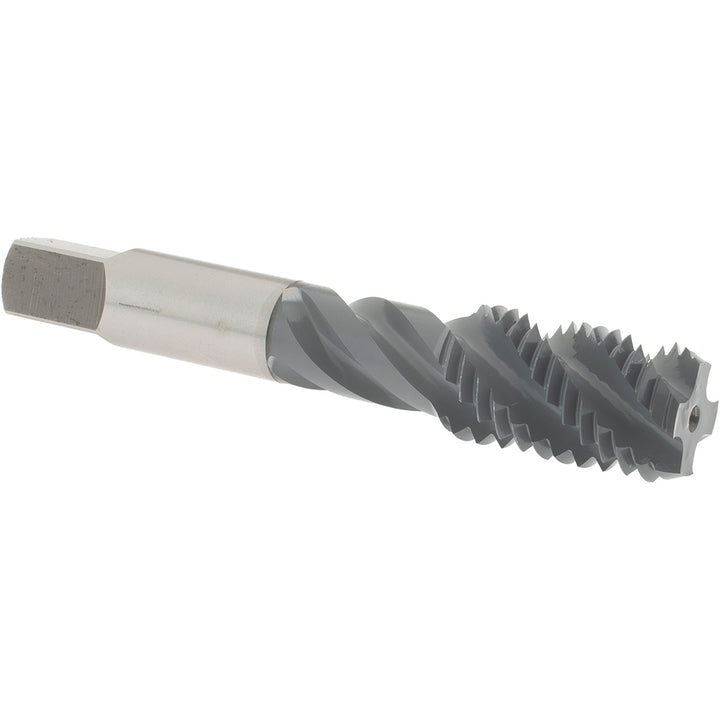

3/4-10 UNC High-Speed Steel Tap, elektraLUBE - OSG 1433702
MFR# 1433702Series 107
$140.31List $179.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-10
CoatingelektraLUBE
Description
The OSG 1433702 is a 3/4-10 UNC High-Speed Steel tap with a elektraLUBE finish. 4 flutes.
Specifications
ChamferBottoming
Coating finishelektraLUBE
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length0.866
Number of flutes4
Overall length in4-1/4
Shank diameter0.194
Thread directionRight Hand
Thread limitH3
Thread size in3/4-10
Thread standardUNC
