OSG
3/8-16 UNC Vanadium High-Speed Steel Tap, TiN - OSG 1645038165
MFR# 1645038165Series 16450
$81.86List $104.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingTiN
Description

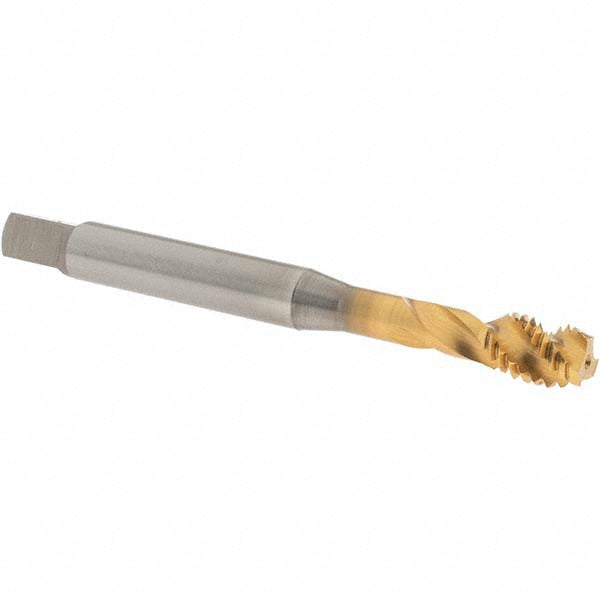

The OSG 1645038165 is a 3/8-16 UNC Vanadium High-Speed Steel tap with a TiN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Neck length1.535
Number of flutes3
Overall length3.937
Shank diameter0.381
Square length0.4375
Square size0.286
Tapping depth1.2500
Threads per inch16
Thread directionRight Hand
Thread length0.5
Thread limitH5
Thread size in3/8-16
Thread standardUNC
