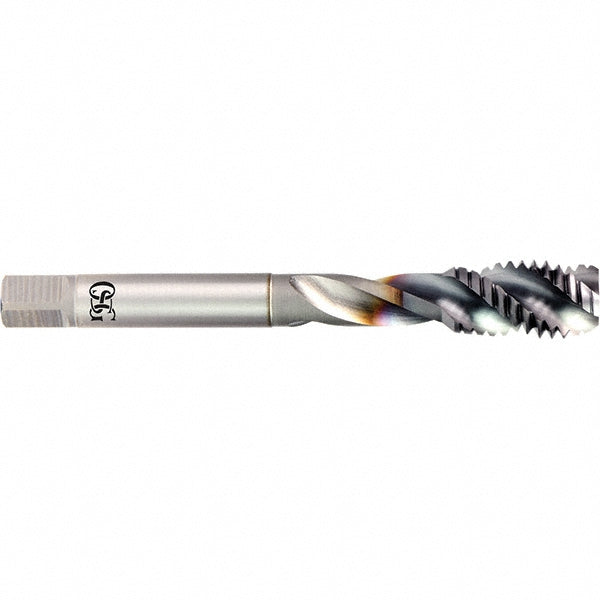

M30x3.5 Metric Fine Powdered Metal Tap - OSG 1650007708

OSG

M30x3.5 Metric Fine Powdered Metal Tap - OSG 1650007708

MFR# 1650007708Series 16500

$420.08List $538.77 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4

Description

The OSG 1650007708 is a Metric Fine Powdered Metal tap. 4 flutes.

Specifications

ChamferSemi-Bottoming
Class of fit6H
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
Helix angle range15 to 45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Neck length (mm)1.00
Number of flutes4
Overall length (mm)18.00
Square length (mm)25.40
Tapping depth (mm)100.00
Thread directionRight Hand
Thread length (mm)42.00
Thread limitD11
Thread size (mm)M30x3.5
Thread standardMetric Fine
