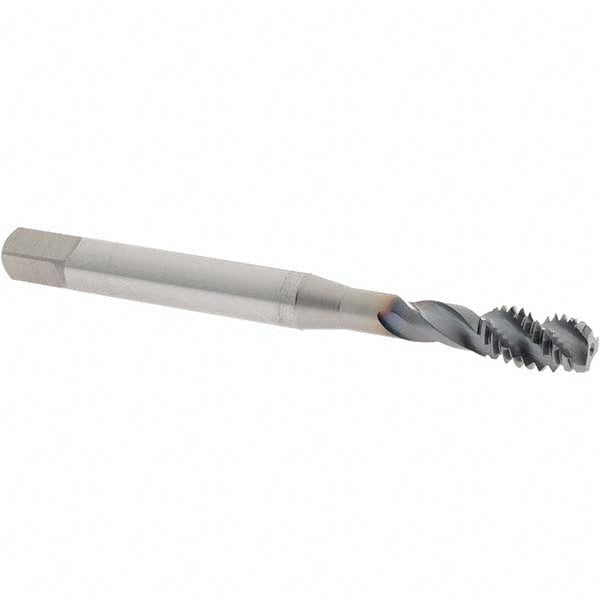

5/16-18 UNC Powdered Metal Tap, TiCN - OSG 1650502108
MFR# 1650502108Series 16505
$35.73List $45.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
CoatingTiCN
Description
The OSG 1650502108 is a 5/16-18 UNC Powdered Metal tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Material gradePMT15
Neck length (mm)25
Number of flutes3
Overall length (mm)7
Shank diameter0.3180
Square length0.375
Square size0.238
Tapping depth (mm)35.00
Threads per inch18
Thread directionRight Hand
Thread length0.444
Thread limitH3
Thread size in5/16-18
Thread standardUNC
