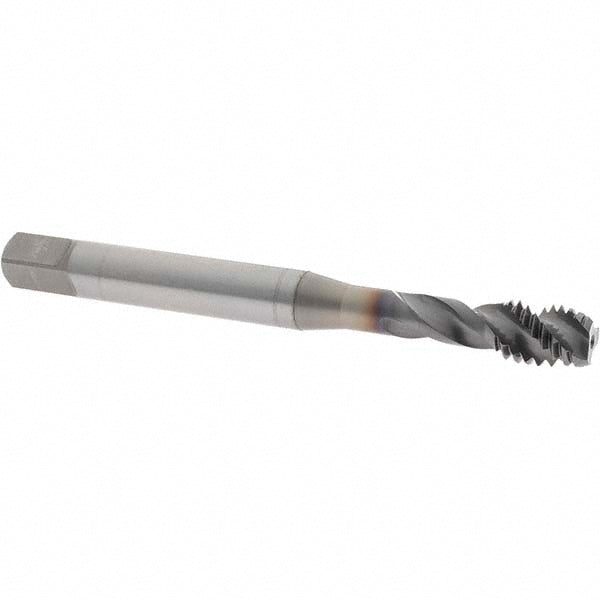

3/8-16 UNC Powdered Metal Tap, TiCN - OSG 1650502508
MFR# 1650502508Series 16505
$39.73List $50.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingTiCN
Description
The OSG 1650502508 is a 3/8-16 UNC Powdered Metal tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialPowdered Metal
Material applicationAlloy Steel; Aluminum; Cast Aluminum; Cast Iron; Hardened Steel; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel; Stainless Steel
Material gradePMT15
Neck length (mm)39
Number of flutes3
Overall length (mm)1
Shank diameter0.3810
Square length0.4375
Square size0.286
Tapping depth (mm)39.00
Threads per inch16
Thread directionRight Hand
Thread length0.5
Thread limitH3
Thread size in3/8-16
Thread standardUNC
