OSG
1/4-20 UNC Solid Carbide Tap - OSG 1660500000
MFR# 1660500000Series 16605
$145.93List $187.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
Description

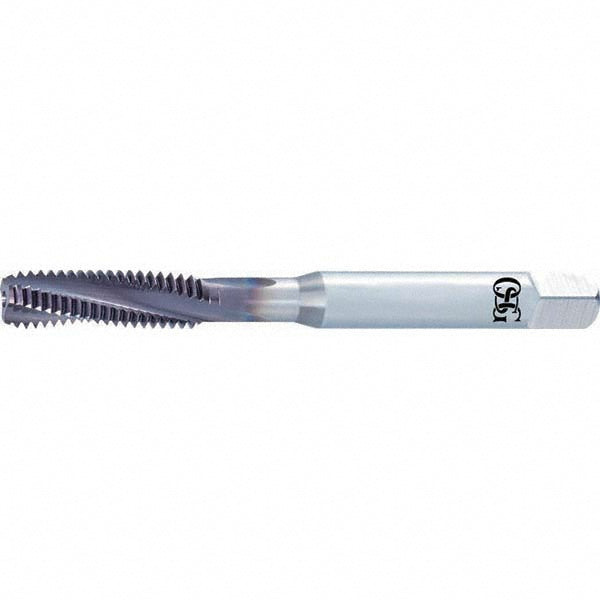

The OSG 1660500000 is a 1/4-20 UNC Solid Carbide tap. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fitNormal
Coolant throughYes
Flute directionRight Hand
Flute styleSpiral
Helix angle15
MaterialSolid Carbide
Material applicationAluminum; Cast Aluminum; Cast Iron
Neck length2.126
Number of flutes3
Overall length3.937
Shank diameter0.48
Square length0.3125
Square size0.191
Tapping depth1.1810
Threads per inch20
Thread directionRight Hand
Thread length0.598
Thread limitH5
Thread size in1/4-20
Thread standardUNC
