#23 Drill Bit, 135° point - OSG 215-1540

OSG

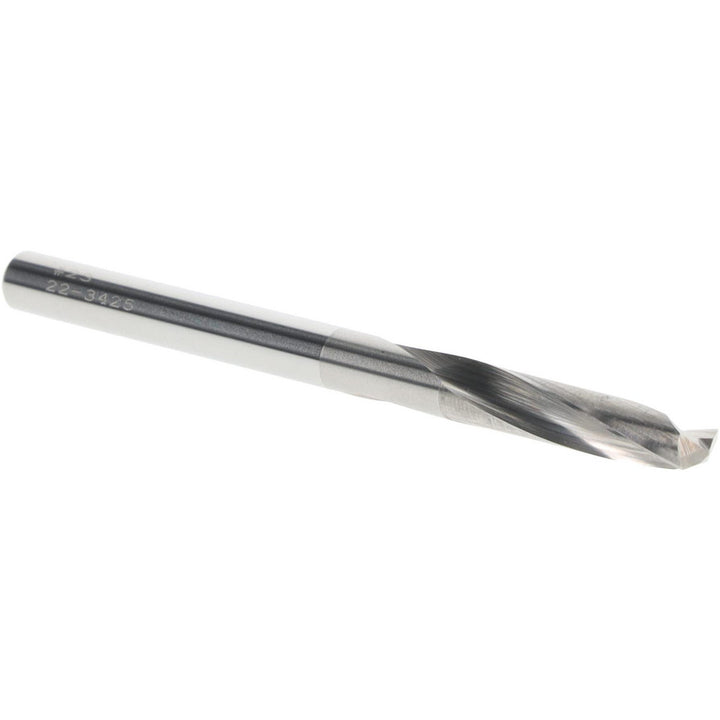

#23 Drill Bit, 135° point - OSG 215-1540

MFR# 215-1540Series 215

$19.19List $24.61 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The OSG 215-1540 is a #23 drill bit, 135° point. Suited for steel, alloy steel, stainless steel, cast iron, aluminum silicate, nickel alloy, titanium, titanium alloy. 1 flute length, 2-1/16 overall length. Series 215.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.013 mm
Drill bit size0.1540
Drill bit size range0.1500 - 0.2000
Drill bit size wire#23
Drill point angle135
Flute by diameter ratio5xD
Flute length in1
Flute typeSpiral
Number of flutes2
Overall length in2-1/16
Point typeStandard
Primary workpiece materialSteel; Alloy Steel; Stainless Steel; Cast Iron; Aluminum Silicate; Nickel Alloy; Titanium; Titanium Alloy
Shank diameter0.1539
Shank typeStraight-Cylindrical
Spiral typeSlow
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
