OSG

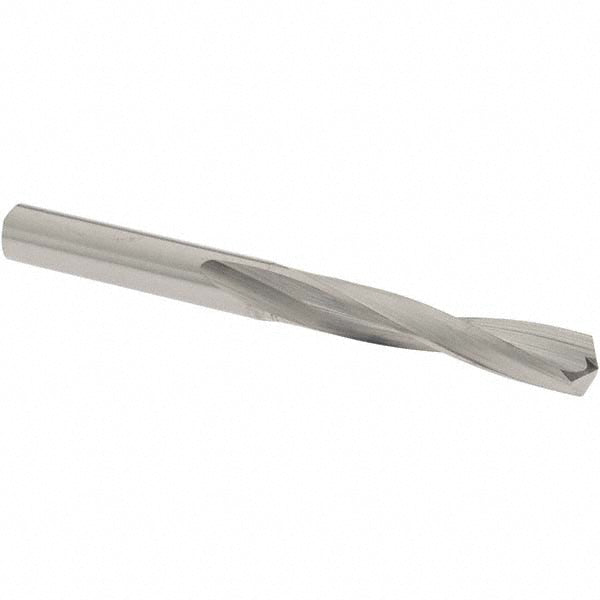

Letter C Solid Carbide Jobber Drill Bit, 135° point - OSG 215-2420
MFR# 215-2420Series 215
$33.49List $42.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The OSG 215-2420 is a Letter C Solid Carbide Jobber drill bit, 135° point. Suited for steel, alloy steel, stainless steel, cast iron, aluminum silicate, nickel alloy, titanium, titanium alloy. 1-3/8 flute length, 2-1/2 overall length. Series 215.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.013 mm
Drill bit size0.2420
Drill bit size letterC
Drill bit size range0.2000 to 0.2500
Drill length typeJobber
Drill point angle135
Flute by diameter ratio5xD
Flute length in1-3/8
Flute typeSpiral
Number of flutes2
Overall length in2-1/2
Point typeStandard
Primary workpiece materialSteel; Alloy Steel; Stainless Steel; Cast Iron; Aluminum Silicate; Nickel Alloy; Titanium; Titanium Alloy
Shank typeStraight-Cylindrical
Spiral typeSlow
Tool materialSolid Carbide
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
