OSG

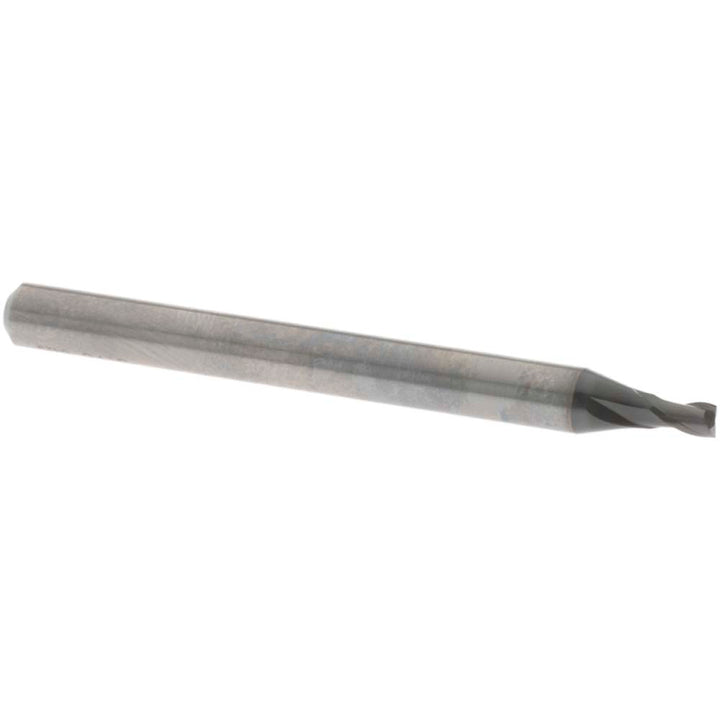

0.0827" 2-Flute Solid Carbide Square End Mill - OSG 3181821
MFR# 3181821Series 3720
$54.04List $69.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
Description
The OSG 3181821 is a 0.0827 2-flute Solid Carbide (Extra Fine) square end mill. 0.1260 length of cut. Series 3720.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.1260
Length of cut range0.1000 - 0.2000
Length typeStub
Material gradeExtra Fine
Mill diameter0.0827
Mill diameter tolerance+0.00/-0.02 mm
Number of flutes2
Overall length (mm)45.00
Shank diameter (mm)4.00
Variable helixNo
Variable indexNo
