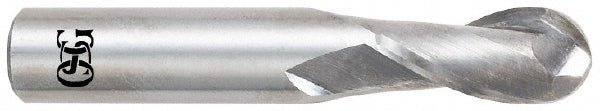

7/64" 2-Flute Solid Carbide Ball End Mill - OSG 402-1094-BN

OSG

7/64" 2-Flute Solid Carbide Ball End Mill - OSG 402-1094-BN

MFR# 402-1094-BNSeries 402BN

$13.88List $17.79 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/64
Flutes2
MaterialSolid Carbide
CoatingUncoated

Description

The OSG 402-1094-BN is a 7/64 2-flute Solid Carbide (Micrograin) ball end mill. 3/8 length of cut, 1-1/2 overall length. Series 402BN.

Specifications

Coating finishUncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/8
Length typeRegular
Material gradeMicrograin
Mill diameter in7/64
Number of flutes2
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance+0.0000 to -0.0005 in
Single or double endSingle
Variable helixNo
Variable indexNo
