OSG

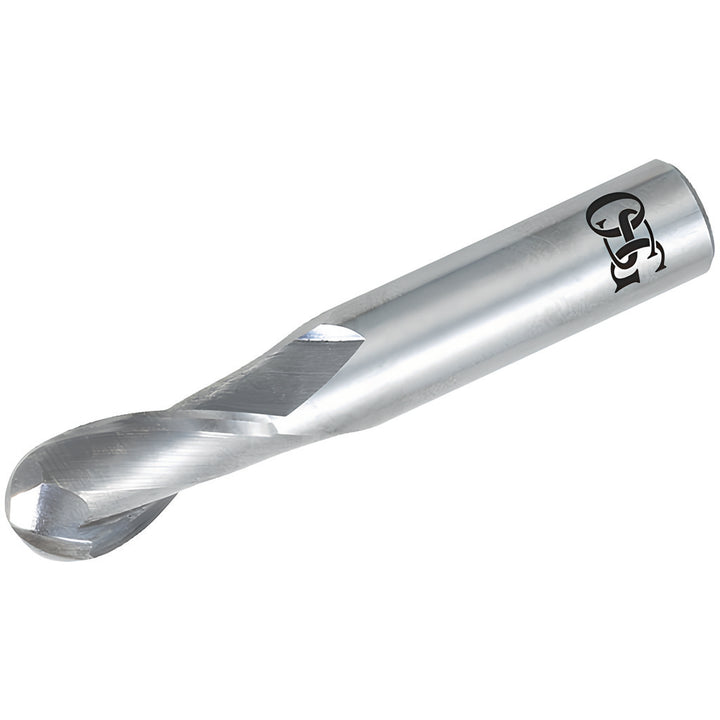

5/32in" 2-Flute Solid Carbide Ball End Mill - OSG 402-1562-BN
MFR# 402-1562-BNSeries 402BN
$18.18List $23.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/32in
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The OSG 402-1562-BN is a 5/32in 2-flute Solid Carbide (Micrograin) ball end mill. 9/16in length of cut, 2in overall length. Series 402BN.
Specifications
Additional informationThe Standard Carbide End Mill Lineup Consists Of A Variety Of Different End Mill Designs, Made To OSG Quality Standards At A Value-Added Price Point That Is Friendly To Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in9/16in
Length typeStandard
Manufacturers catalog number402-1562-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in5/32in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.0782
Number of flutes2
Overall length in2in
Reach length0.5625
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in3/16in
Shank diameter tolerance+0.0000/-0.0005 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
