OSG

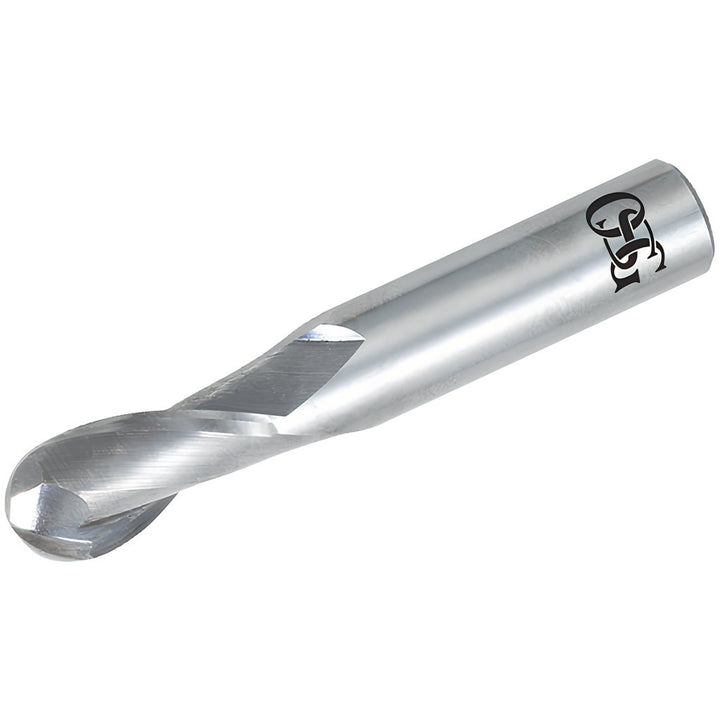

11/16in" 2-Flute Solid Carbide Ball End Mill - OSG 402-6875-BN
MFR# 402-6875-BNSeries 402BN
$155.71List $199.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter11/16in
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The OSG 402-6875-BN is a 11/16in 2-flute Solid Carbide (Micrograin) ball end mill. 1-3/8in length of cut, 4in overall length. Series 402BN.
Specifications
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in1-3/8in
Length typeStandard
Manufacturers catalog number402-6875-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in11/16in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.3438
Number of flutes2
Overall length in4in
Reach length1.3750
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in3/4in
Shank diameter tolerance+0.0000/-0.0005 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
