OSG

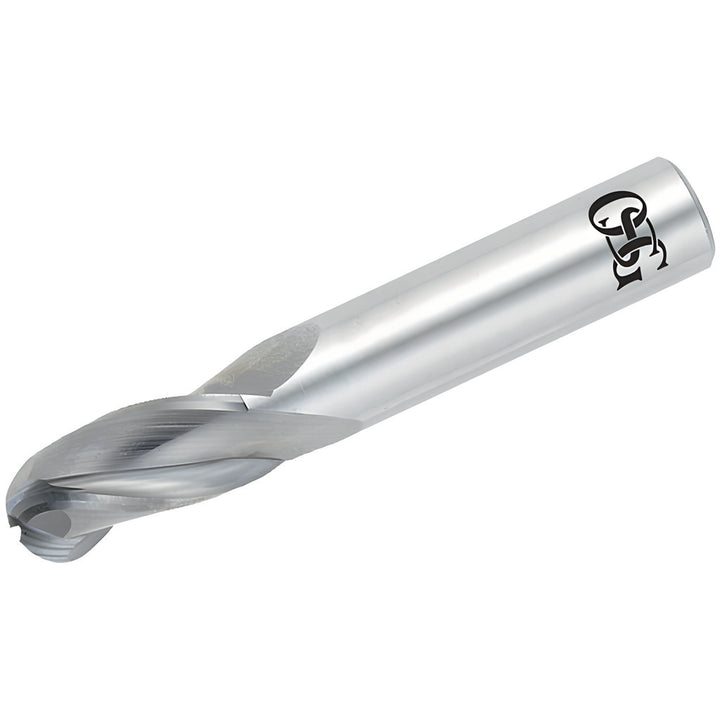

5/16in" 3-Flute Solid Carbide Ball End Mill - OSG 403-3125-BN
MFR# 403-3125-BNSeries 403BN
$26.72List $34.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/16in
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The OSG 403-3125-BN is a 5/16in 3-flute Solid Carbide (Micrograin) ball end mill. 13/16in length of cut, 2-1/2in overall length. Series 403BN.
Specifications
Additional informationThe Standard Carbide End Mill Lineup Consists Of A Variety Of Different End Mill Designs, Made To OSG Quality Standards At A Value-Added Price Point That Is Friendly To Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in13/16in
Length typeStandard
Manufacturers catalog number403-3125-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in5/16in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.1563
Number of flutes3
Overall length in2-1/2in
Reach length0.8125
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in5/16in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
