OSG

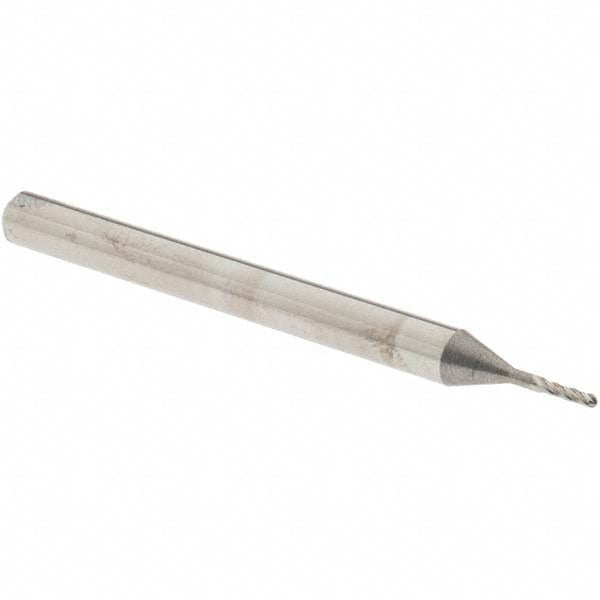

1/32in" 4-Flute Solid Carbide Ball End Mill - OSG 404-0312-BN
MFR# 404-0312-BNSeries 404BN
$19.57List $25.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/32in
Flutes4
MaterialSolid Carbide
Description
The OSG 404-0312-BN is a 1/32in 4-flute Solid Carbide (Micrograin) ball end mill. 1/8in length of cut, 1-1/2in overall length. Series 404BN.
Specifications
ChipbreakerNo
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in1/8in
Length typeStandard
Manufacturers catalog number404-0312-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in1/32in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.0157
Number of flutes4
Overall length in1-1/2in
Reach length0.1250
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in1/8in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
