OSG

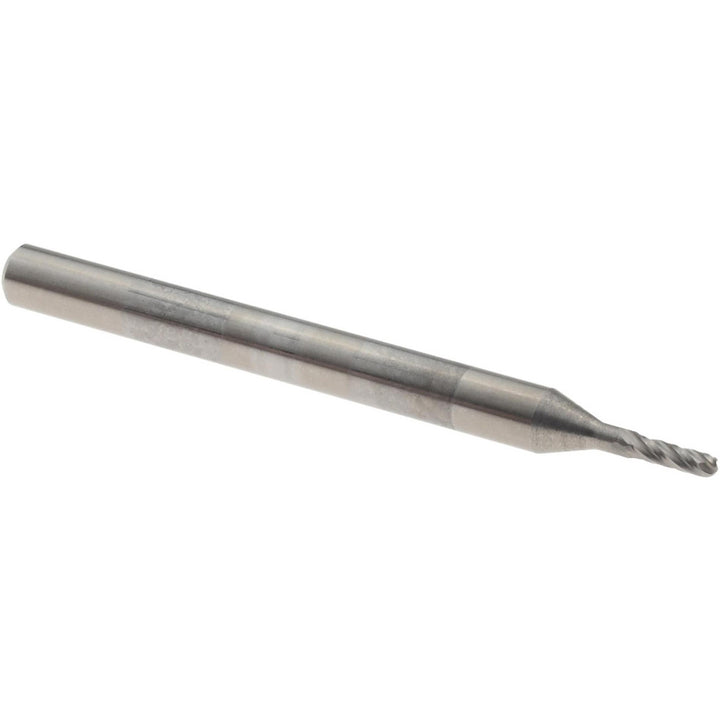

3/64" 4-Flute Solid Carbide Ball End Mill - OSG 404-0469-BN
MFR# 404-0469-BNSeries 404BN
$13.88List $17.79
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/64
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The OSG 404-0469-BN is a 3/64 4-flute Solid Carbide (Micrograin) ball end mill. 9/64 length of cut, 1-1/2 overall length. Series 404BN.
Specifications
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Helix styleMedium
Length of cut in9/64
Length typeStandard
Manufacturers catalog number404-0469-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in3/64
Mill diameter tolerance+0.0020/-0.0020 in
Neck length0.0000
Nose radius0.0235
Number of flutes4
Overall length in1-1/2
Reach length0.1406
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in1/8
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
