OSG

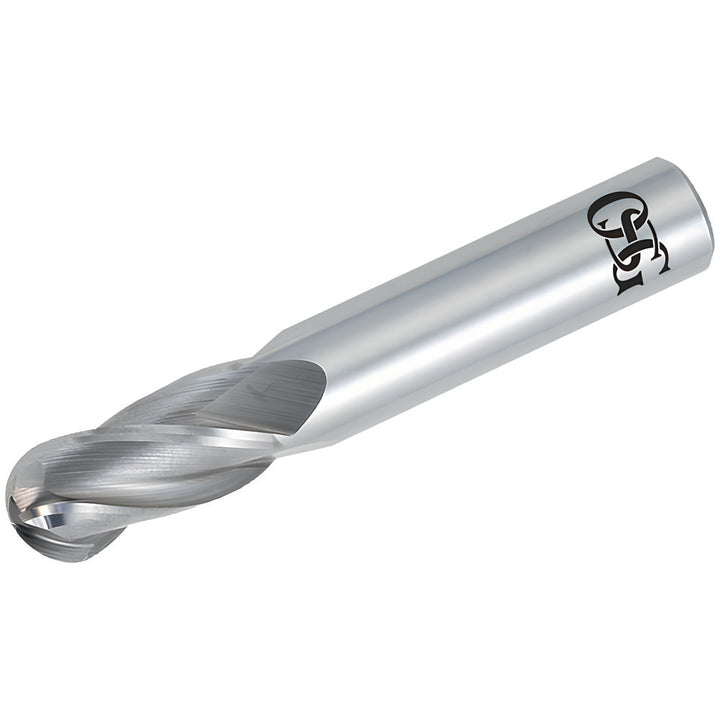

11/64in" 4-Flute Solid Carbide Ball End Mill - OSG 404-1719-BN
MFR# 404-1719-BNSeries 404BN
$19.56List $25.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter11/64in
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The OSG 404-1719-BN is a 11/64in 4-flute Solid Carbide (Micrograin) ball end mill. 9/16in length of cut, 2in overall length. Series 404BN.
Specifications
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in9/16in
Length typeStandard
Manufacturers catalog number404-1719-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in11/64in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.0860
Number of flutes4
Overall length in2in
Reach length0.5625
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in3/16in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
