OSG

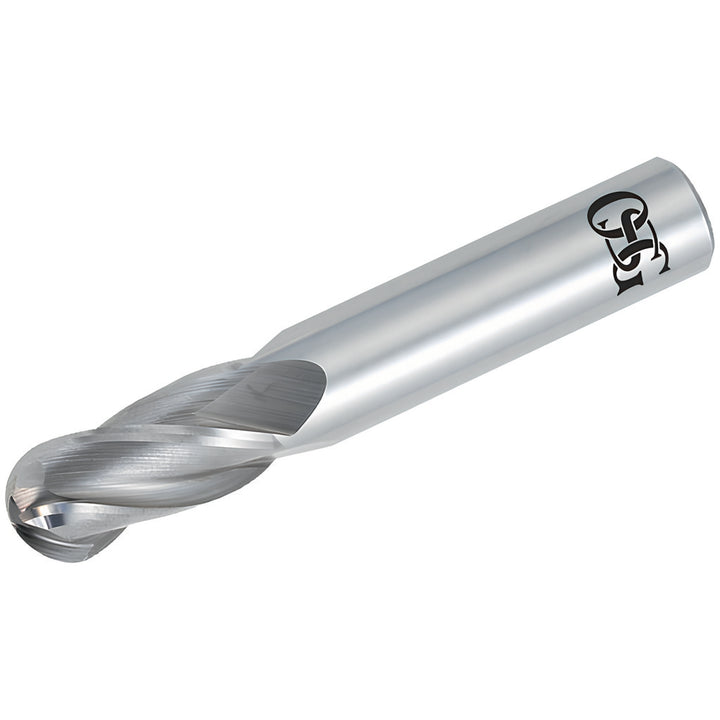

13/32in" 4-Flute Solid Carbide Ball End Mill, TiAlN - OSG 404-4062-BN11
MFR# 404-4062-BN11Series 404BN
$68.96List $88.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter13/32in
Flutes4
MaterialSolid Carbide
CoatingTiAlN
Description
The OSG 404-4062-BN11 is a 13/32in 4-flute Solid Carbide (TiAlN) ball end mill with a TiAlN finish for longer tool life. 1in length of cut, 2-3/4in overall length. Series 404BN.
Specifications
Additional informationThe Standard Carbide End Mill Lineup Consists Of A Variety Of Different End Mill Designs, Made To OSG Quality Standards At A Value-Added Price Point That Is Friendly To Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in1in
Length typeStandard
Manufacturers catalog number404-4062-BN11
Material gradeTiAlN
Material removal typeRoughing & Finishing
Mill diameter in13/32in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.2032
Number of flutes4
Overall length in2-3/4in
Reach length1.0000
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in7/16in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
