OSG

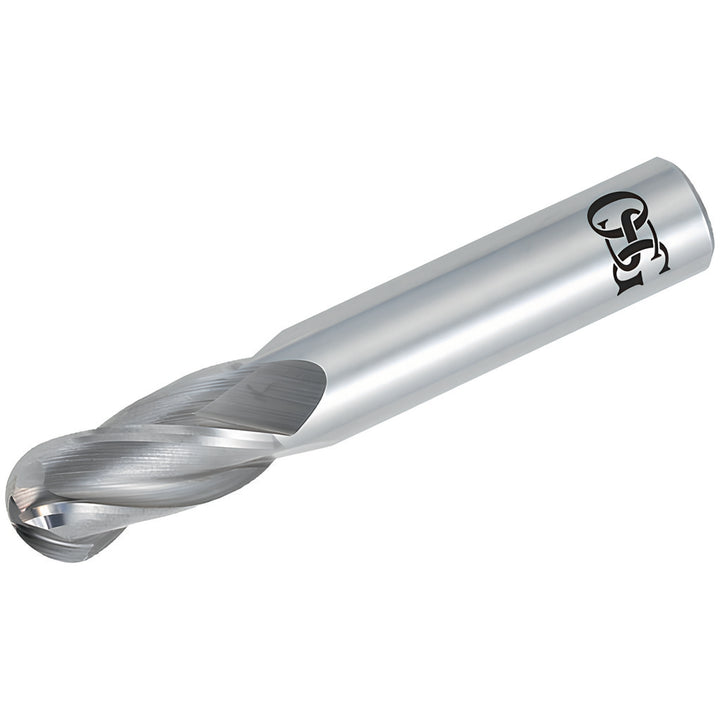

0.4724" 4-Flute Solid Carbide Ball End Mill - OSG 404-4724-BN

MFR# 404-4724-BNSeries 404BN

$59.27List $76.01 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The OSG 404-4724-BN is a 0.4724 4-flute Solid Carbide (Micrograin) ball end mill. Series 404BN.

Specifications

Additional informationThe Standard Carbide End Mill Lineup Consists Of A Variety Of Different End Mill Designs, Made To OSG Quality Standards At A Value-Added Price Point That Is Friendly To Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle30

Helix styleMedium

Length of cut (mm)25.00mm

Length typeStandard

Manufacturers catalog number404-4724-BN

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter0.4724

Mill diameter tolerance+0.00/-0.05 mm

Neck length (mm)0.00

Nose radius (mm)6.00

Number of flutes4

Overall length (mm)76.00mm

Reach length (mm)25.00

Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Shank diameter (mm)12.00mm

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexNo
