5/8" 4-Flute Solid Carbide Ball End Mill, TiCN - OSG 404-6250-BN08

OSG

5/8" 4-Flute Solid Carbide Ball End Mill, TiCN - OSG 404-6250-BN08

MFR# 404-6250-BN08Series 404BN

$110.69List $141.97 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

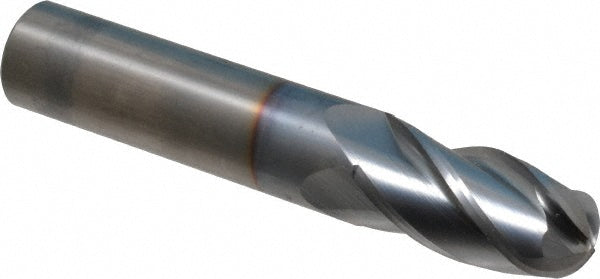

The OSG 404-6250-BN08 is a 5/8 4-flute Solid Carbide (Micrograin) ball end mill with a TiCN finish for longer tool life. 1-1/4 length of cut, 3-1/2 overall length. Series 404BN.

Specifications

Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/4
Length typeRegular
Material gradeMicrograin
Mill diameter in5/8
Number of flutes4
Overall length in3-1/2
Shank diameter in5/8
Single or double endSingle
Variable helixNo
Variable indexNo
