OSG
1/4in" 2-Flute Solid Carbide Ball End Mill - OSG 412-2500-BN
MFR# 412-2500-BNSeries 412BN
$17.79List $22.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4in
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated
Description

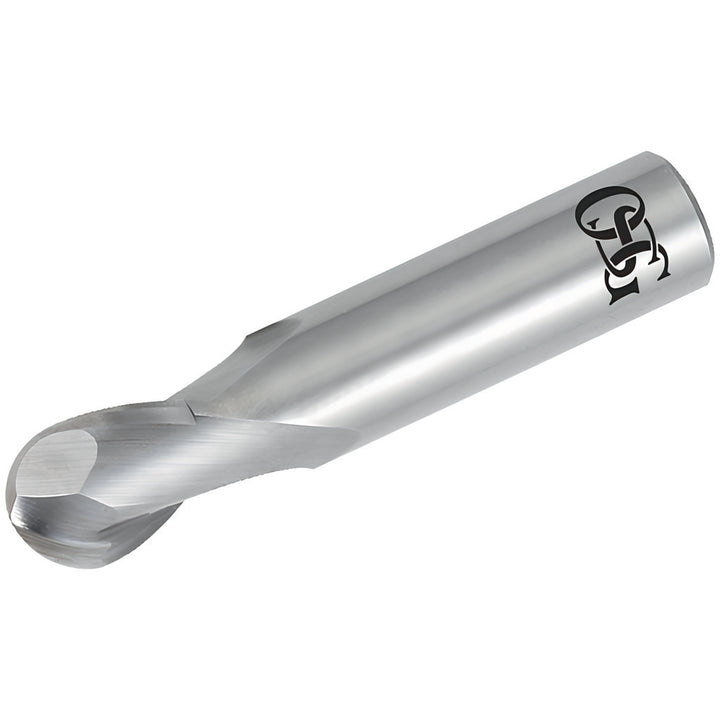

The OSG 412-2500-BN is a 1/4in 2-flute Solid Carbide (Micrograin) ball end mill. 1/2in length of cut, 2in overall length. Series 412BN.
Specifications
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in1/2in
Length typeStandard
Manufacturers catalog number412-2500-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in1/4in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.1250
Number of flutes2
Overall length in2in
Reach length0.5000
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in1/4in
Shank diameter tolerance+0.0000/-0.0005 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
