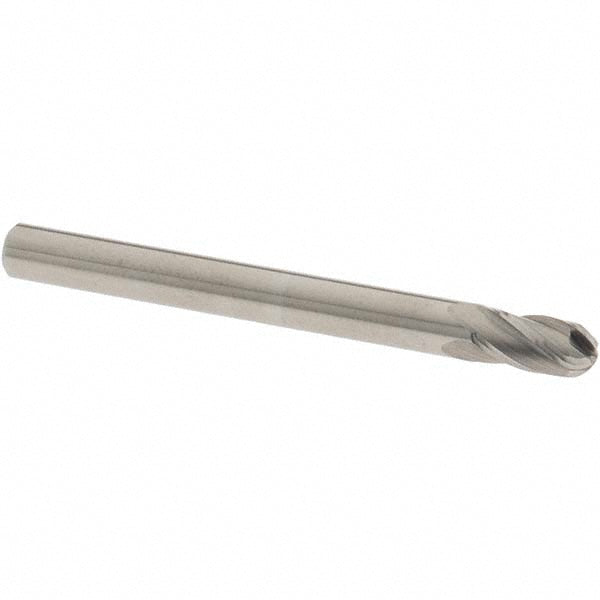

3/16in" 4-Flute Solid Carbide Ball End Mill - OSG 414-1875-BN

OSG

3/16in" 4-Flute Solid Carbide Ball End Mill - OSG 414-1875-BN

MFR# 414-1875-BNSeries 414BN

$15.74List $20.19 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16in
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The OSG 414-1875-BN is a 3/16in 4-flute Solid Carbide (Micrograin) ball end mill. 3/8in length of cut, 2in overall length. Series 414BN.

Specifications

Additional informationThe Standard Carbide End Mill Lineup Consists Of A Variety Of Different End Mill Designs, Made To OSG Quality Standards At A Value-Added Price Point That Is Friendly To Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in3/8in
Length typeStandard
Manufacturers catalog number414-1875-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in3/16in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.0938
Number of flutes4
Overall length in2in
Reach length0.3750
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in3/16in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
