OSG

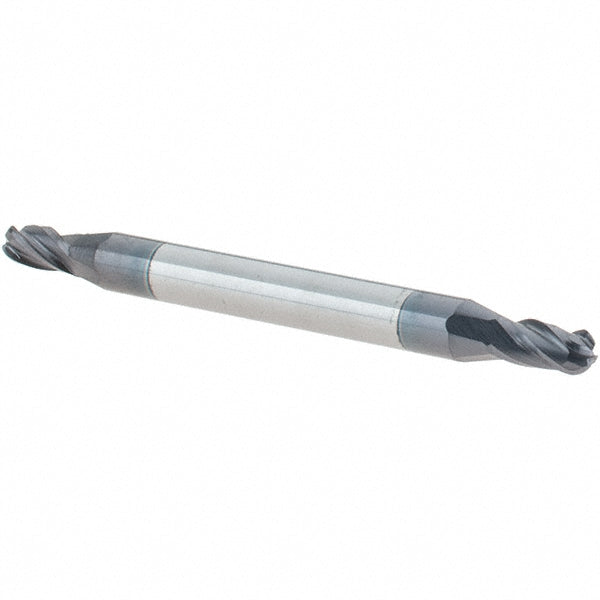

3/32in" 4-Flute Solid Carbide Ball End Mill, TiAlN - OSG 424-0938-BN11

MFR# 424-0938-BN11Series 402BN

$40.47List $51.90 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/32in

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The OSG 424-0938-BN11 is a 3/32in 4-flute Solid Carbide (TiAlN) ball end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, hard material. 3/16in length of cut, 1-1/2 overall length. Series 402BN.

Specifications

Additional informationThe Standard Carbide End Mill Lineup Consists Of A Variety Of Different End Mill Designs, Made To OSG Quality Standards At A Value-Added Price Point That Is Friendly To Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle30

Helix styleMedium

Length of cut in3/16in

Length typeStub

Manufacturers catalog number424-0938-BN11

Material gradeTiAlN

Material removal typeRoughing & Finishing

Mill diameter in3/32in

Mill diameter tolerance+0.0000/-0.0020 in

Neck length0.0000

Nose radius0.0469

Number of flutes4

Overall length in1-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material

Reach length0.1875

Shank diameter in1/8

Shank typeStraight-Cylindrical

Single or double endDouble

System of measurementFractional Inch

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
