OSG

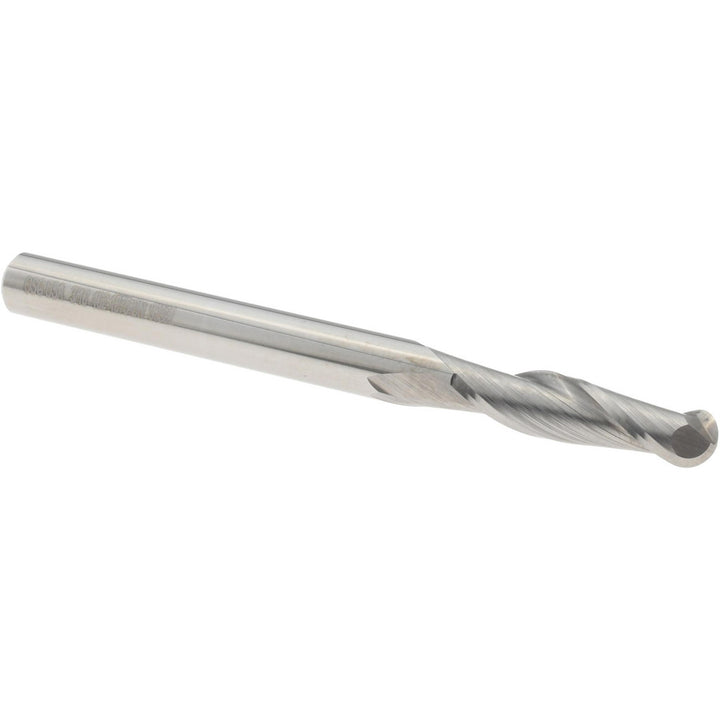

3/16" 2-Flute Solid Carbide Ball End Mill - OSG 462-1875-BN

MFR# 462-1875-BNSeries 462BN

$24.61List $31.57 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The OSG 462-1875-BN is a 3/16 2-flute Solid Carbide (Micrograin) ball end mill. 3/4 length of cut, 2-1/4 overall length. Series 462BN.

Specifications

Additional informationThe Standard Carbide End Mill Lineup Consists of a Variety of Different End Mill Designs, Made to OSG Quality Standards At a Value-Added Price Point That Is Friendly to Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Helix styleMedium

Length of cut in3/4

Length typeLong

Manufacturers catalog number462-1875-BN

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in3/16

Mill diameter tolerance+0.0000/-0.0020 in

Neck length0.0000

Nose radius0.0938

Number of flutes2

Overall length in2-1/4

Reach length0.7500

Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material

Shank diameter in3/16

Shank diameter tolerance+0.0000/-0.0005 in

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
