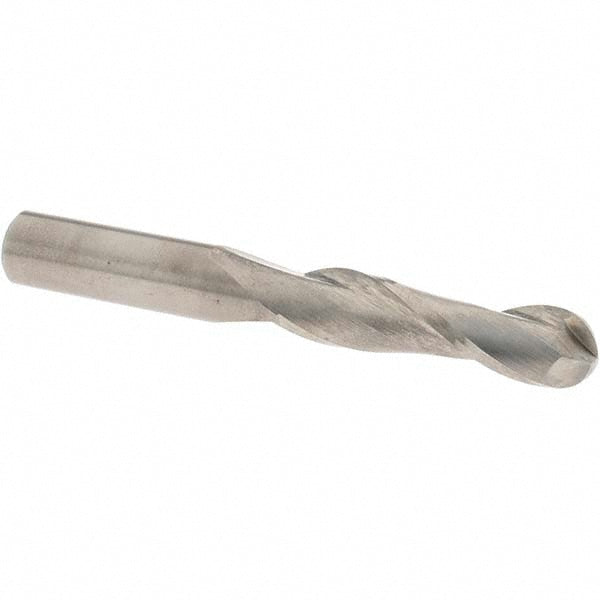

1/2in" 2-Flute Solid Carbide Ball End Mill - OSG 462-5000-BN

OSG

1/2in" 2-Flute Solid Carbide Ball End Mill - OSG 462-5000-BN

MFR# 462-5000-BNSeries 462BN

$92.65List $118.83 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2in
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The OSG 462-5000-BN is a 1/2in 2-flute Solid Carbide (Micrograin) ball end mill. 2in length of cut, 4in overall length. Series 462BN.

Specifications

Additional informationThe Standard Carbide End Mill Lineup Consists Of A Variety Of Different End Mill Designs, Made To OSG Quality Standards At A Value-Added Price Point That Is Friendly To Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in2in
Length typeLong
Manufacturers catalog number462-5000-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in1/2in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.2500
Number of flutes2
Overall length in4in
Reach length2.0000
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material
Shank diameter in1/2in
Shank diameter tolerance+0.0000/-0.0005 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
