OSG
3/16in" 4-Flute Solid Carbide Ball End Mill - OSG 464-1875-BN
MFR# 464-1875-BNSeries 464BN
$25.40List $32.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16in
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated
Description

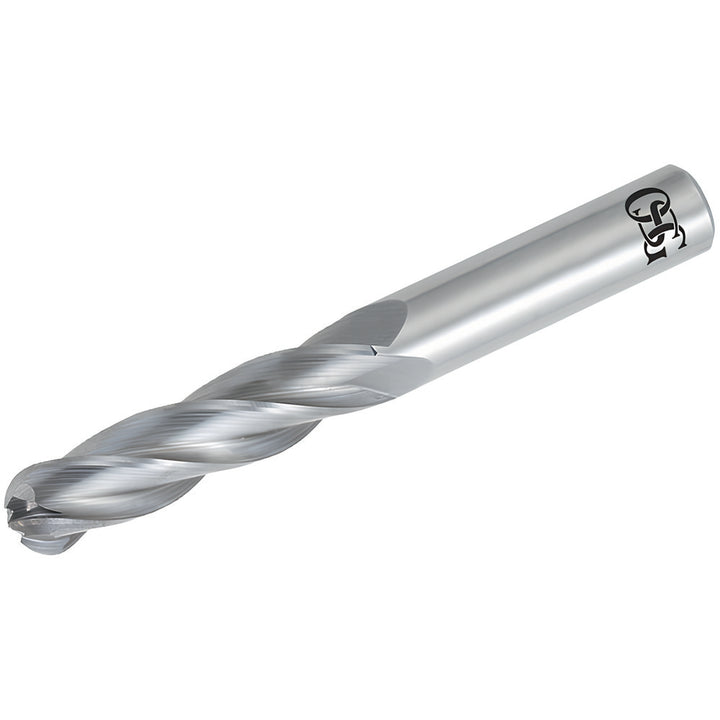

The OSG 464-1875-BN is a 3/16in 4-flute Solid Carbide (Micrograin) ball end mill. 3/4in length of cut, 2-1/4in overall length. Series 464BN.
Specifications
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in3/4in
Length typeLong
Manufacturers catalog number464-1875-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in3/16in
Neck length0.0000
Nose radius0.0938
Number of flutes4
Overall length in2-1/4in
Reach length0.7500
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material
Shank diameter in3/16in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
