OSG

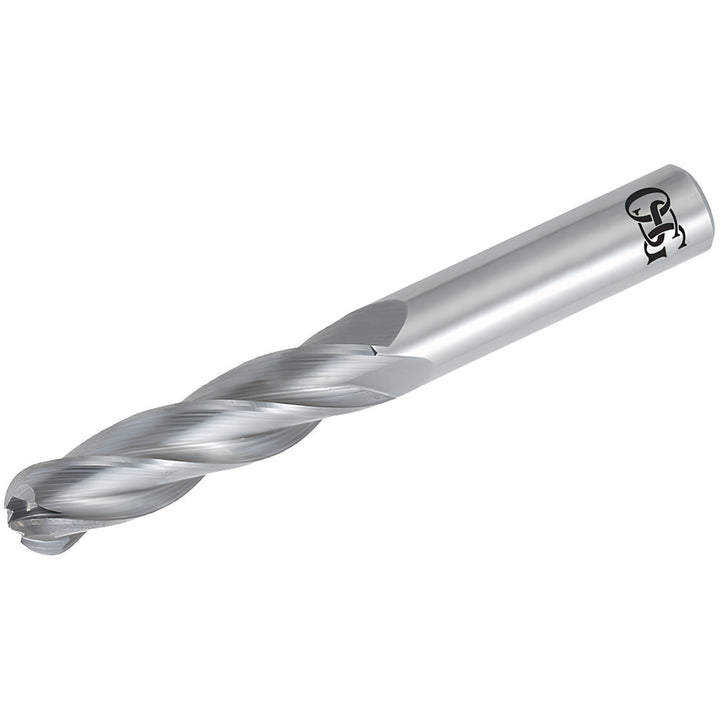

3/8in" 4-Flute Solid Carbide Ball End Mill - OSG 464-3750-BN
MFR# 464-3750-BNSeries 464BN
$50.84List $65.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8in
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The OSG 464-3750-BN is a 3/8in 4-flute Solid Carbide (Micrograin) ball end mill. 1-1/8in length of cut, 3in overall length. Series 464BN.
Specifications
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in1-1/8in
Length typeLong
Manufacturers catalog number464-3750-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in3/8in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.1875
Number of flutes4
Overall length in3in
Reach length1.1250
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material
Shank diameter in3/8in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
