OSG

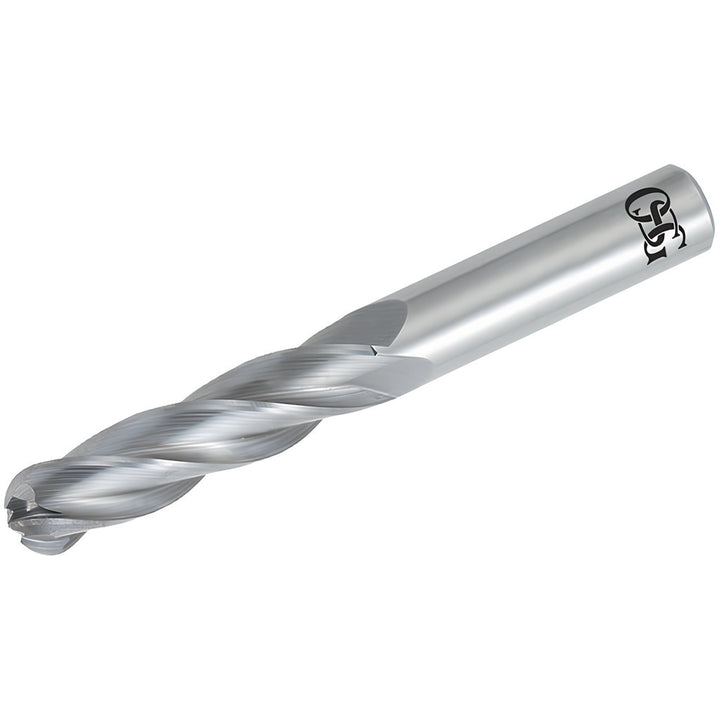

3/4in" 4-Flute Solid Carbide Ball End Mill - OSG 464-7500-BN
MFR# 464-7500-BNSeries 464BN
$231.92List $297.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4in
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The OSG 464-7500-BN is a 3/4in 4-flute Solid Carbide (Micrograin) ball end mill. 2-1/4in length of cut, 5in overall length. Series 464BN.
Specifications
Additional informationThe Standard Carbide End Mill Lineup Consists Of A Variety Of Different End Mill Designs, Made To OSG Quality Standards At A Value-Added Price Point That Is Friendly To Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in2-1/4in
Length typeLong
Manufacturers catalog number464-7500-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in3/4in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.3750
Number of flutes4
Overall length in5in
Reach length2.2500
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material
Shank diameter in3/4in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
