OSG

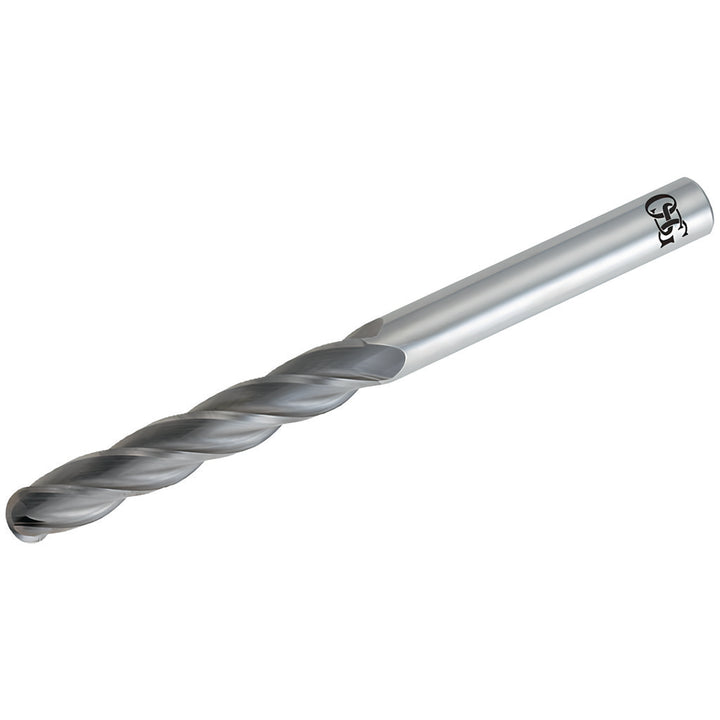

1/2in" 4-Flute Solid Carbide Ball End Mill, TiAlN - OSG 484-5000-BN11
MFR# 484-5000-BN11Series 484BN
$178.09List $228.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2in
Flutes4
MaterialSolid Carbide
CoatingTiAlN
Description
The OSG 484-5000-BN11 is a 1/2in 4-flute Solid Carbide (Micrograin) ball end mill with a TiAlN finish for longer tool life. 3in length of cut, 6in overall length. Series 484BN.
Specifications
Additional informationThe Standard Carbide End Mill Lineup Consists Of A Variety Of Different End Mill Designs, Made To OSG Quality Standards At A Value-Added Price Point That Is Friendly To Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing
ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut in3in
Length typeExtra Long
Manufacturers catalog number484-5000-BN11
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in1/2in
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.2500
Number of flutes4
Overall length in6in
Reach length3.0000
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material
Shank diameter in1/2in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
