OSG

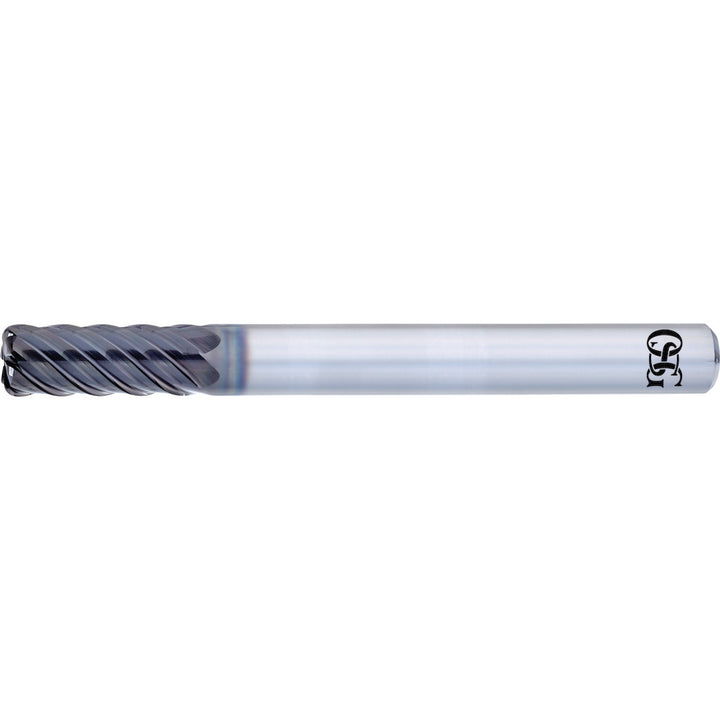

1/4" 6-Flute Solid Carbide Corner Radius End Mill, DUROREY - OSG 84701323

MFR# 84701323Series 8470

$74.11List $95.04 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes6

MaterialSolid Carbide

CoatingDUROREY

Description

The OSG 84701323 is a 1/4 6-flute Solid Carbide corner radius end mill with a DUROREY finish for longer tool life. Suited for hard material, steel. 5/8 length of cut, 2-1/2 overall length. Series 8470.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishDUROREY

Coolant throughNo

Corner radius0.0100

Corner radius tolerance0.0000 to -0.0080 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleHigh

Length of cut in5/8

Length typeRegular

Manufacturers catalog number84701323

Material applicationAlloy Steel; Die Steel; Hardened Steel

Material removal typeFinishing

Mill diameter in1/4

Number of flutes6

Overall length in2-1/2

PitchClose

Primary workpiece materialHard Material; Steel

Secondary workpiece materialSteel

Shank diameter in1/4

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
